Technical Spec Sheet
Detailed machine specifications including dimensions, production speeds, and technical requirements.
Login to DownloadP5-4ZA

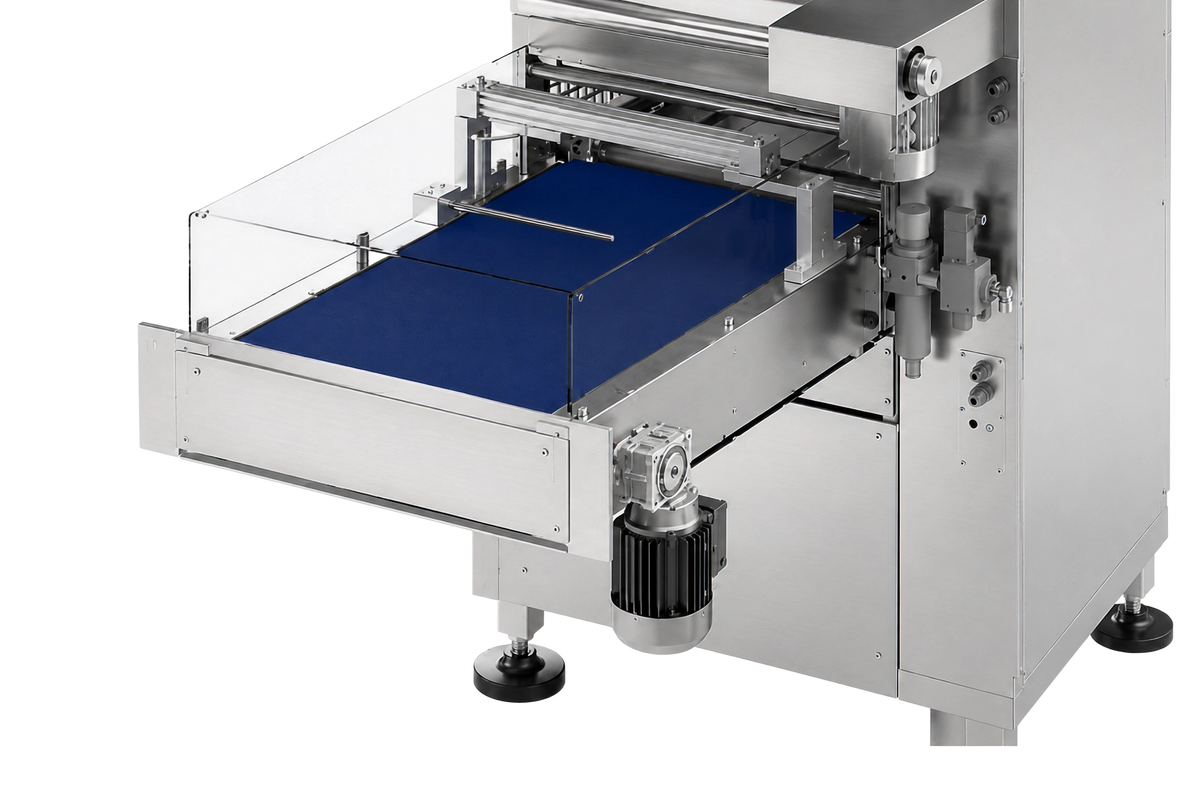

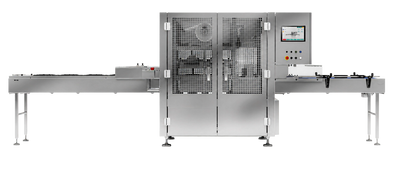

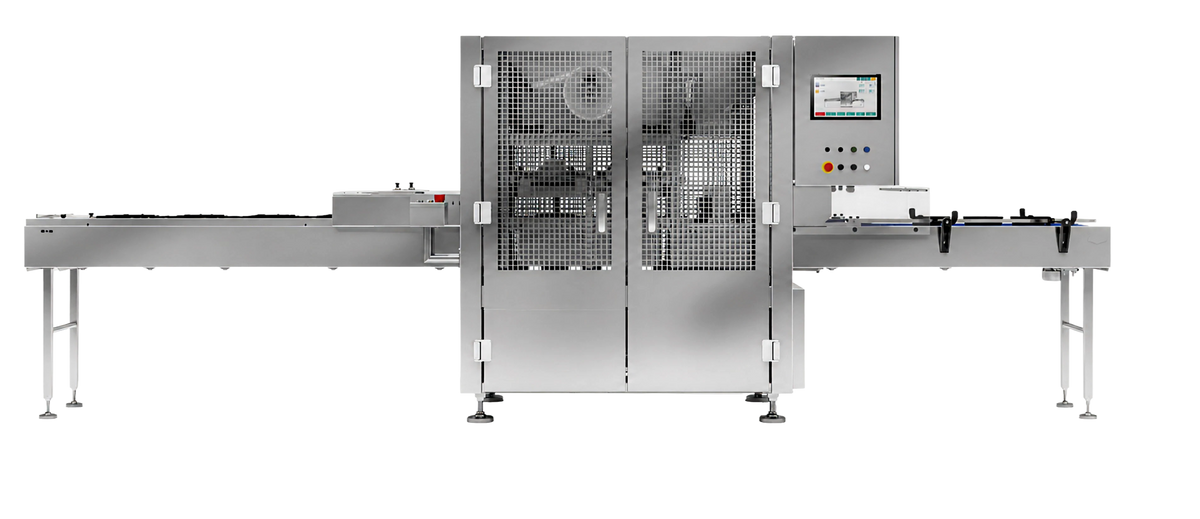

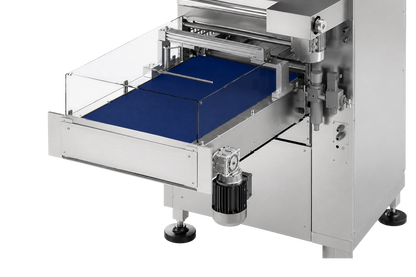

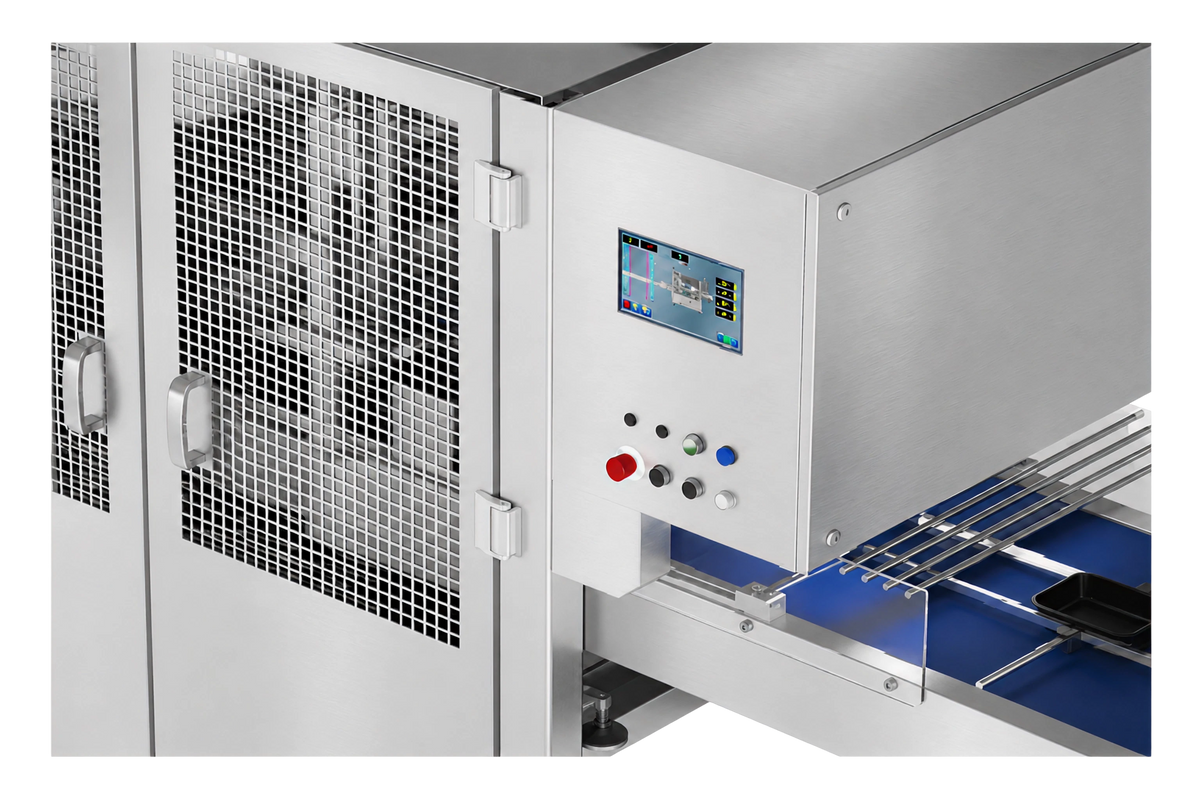

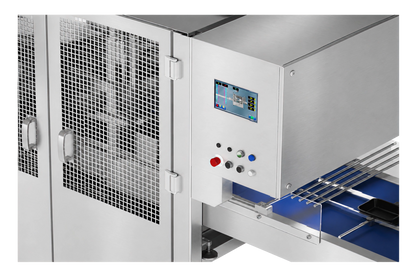

The P5-4ZA series is a fully automated tray and cup seal system capable of producing vacuum-gas MAP packs, vacuum skin packs (VSP), and no MAP sealed trays and cups. The system supports up to 3 sealing stations.
Selected Configuration
P5-4ZA
Technical Specifications
Output
Up to 150 trays/min
Formats
Top Seal / MAP / VSP
Production Speed Range
Up to 150 trays per minute (no MAP)
Frame Construction
Stainless steel sanitary welded frame
Model Variants
P5-4ZA

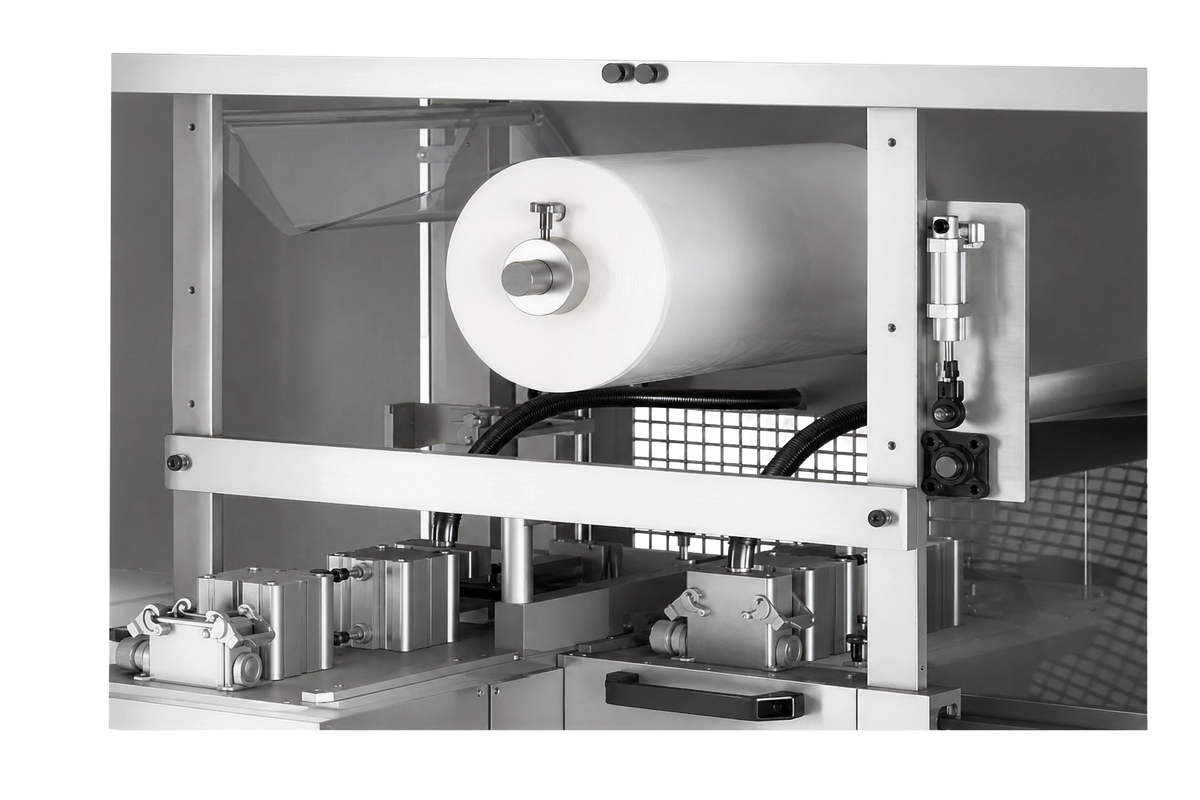

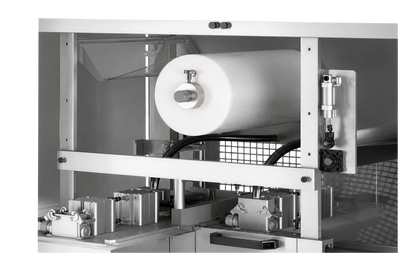

Film Width
21.6 in
Film Diameter
11.8 in
Machine name, selected model, and SKU will be included automatically.
Compare Model Configurations
Compare available model configurations and technical specifications.
Specification
P5-4ZA
Length
160.8 in
Width
40.8 in
Height
68.7 in
Weight
-
Frame Construction
Stainless steel sanitary welded frame
Electrical Supply
-
Maximum Film Width
21.6 in
Maximum Film Diameter
11.8 in
Production Speed Range
Up to 150 trays per minute (no MAP)
